Product Overview

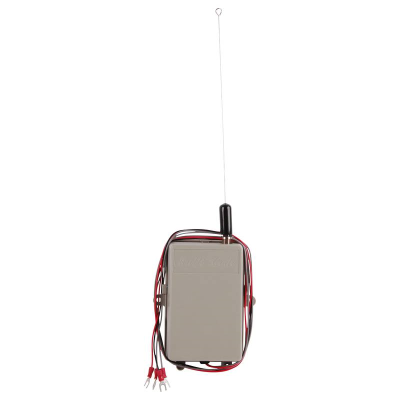

The MCS109950 is a 1-Channel, 12-24V, Gate Receiver is designed for use in gate operator applications. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. Also included is 3-feet of coax cable and a bulkhead connector for remotely mounting the whip antenna in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing. An external Model 106603 Remote Whip Antenna can also be used with this receiver. The MCS109950 is a dual frequency receiver. An internal jumper selects either 300 MHz or 310 MHz operating frequency. The 300 MHz frequency is compatible with standard Multi-Code transmitters, the 310 MHz frequency is compatible with the Stanley version Multi-Code transmitters. The operator supplies 12-24 volt power to the receiver, or the receiver can be powered by a separate AC power transformer or DC power supply. The normally open relay output can switch up to 1 amp @ 30 VAC. A 3-foot, 2-conductor wire lead with spade lugs is provided for attachment to the gate operator�s radio activation terminals. The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator.
Warranty Information
1 Year Limited
Specifications
- ApplicationFor Automatic Gate Operators/Systems where a Remote Antenna is Needed
- ColorGray
- CommunicationRF frequency: 300 MHz or 310 MHz (jumper selectable)
- Depth1.5"
- Device Length11" Wire Whip Antenna
- Device TypeDual Frequency Receiver
- Height5.25"
- Includes3-foot, 2-conductor wire lead with spade lugs, 11 in. wire whip antenna
- Operating Temperature-4-140 deg F
- Operating Voltage12-24 volts AC or DC
- PowerHardwire
- Programmer/Programming10-position coding switch
- RelayThe normally open relay output can switch up to 1 amp @ 30 VAC
- StandardsFCC Part 15
- Unit of MeasureEach
- Use WithMulti-Code and Stanley transmitters only
- Weight0.7 lb
- Width3.625"
