LCN 6440-2210 COMPACT Low Energy Auto Operator Module Kit + Battery Powered Actuator Kit

Part #:
Model:: LCN64402210AL

Was: $2,294.00

Now: $1,651.68

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review

Reset Selections

This item is not eligible for return

Quantity

Adding to cart… The item has been added

Product Overview

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings.

The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

The COMPACT motor gearbox assembly is surface installed on the door or top jamb and attaches to the 4040XP with a mounting plate and just 4 screws. It can be powered by a standard wall outlet or an external power supply. The operator includes a wiring harness with a wall adaptor plug that steps down the building’s 110 voltage to 24VDC. A door loop kit is included to route the wiring from the door to the wall.

Resources

Warranty Information

2 Years Limited

Specifications

ADA Compliant

Yes
Application

Interior openings only
Arm Type

REG or RwPA only
BAA Compliant

Yes
Country of Origin

USA
Cover

Full Plastic
Cylinder

4040XP standard cylinder only
Cylinder Type

4040XP standard cylinder only
Hand

Non-Handed
Includes

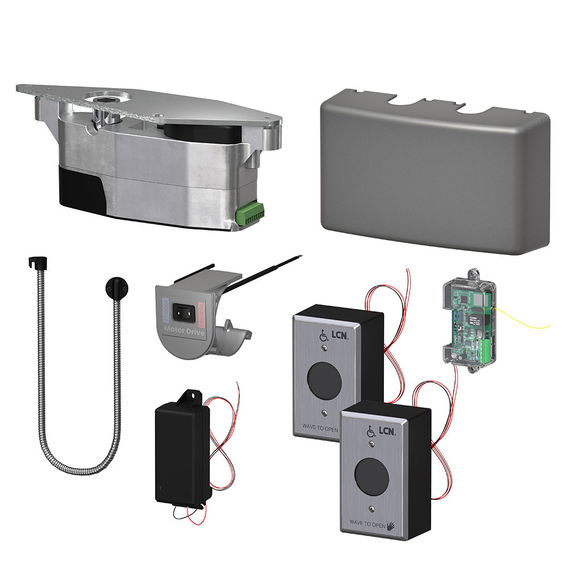

Gearmotor assembly, mounting plate and screws; Cover and switch insert; Wall adapter; Door loop; 30 ft of copper wire; 8310-2210 Touchless, battery powered, RF actuator kit
Input Voltage

24 VDC (2A to operate)
Max. Door Weight

185 lbs.
Mounting Style

Tri Mount
Power

Electrohydraulic Technology
Series

6400 Series COMPACT Automatic Operator
Standards

ANSI 156.19; UL 228/325, UL 10C
Unit of Measure

Each
Use With

LCN 4040XP
Voltage Rating

24VDC (75mA to power RF receiver)
