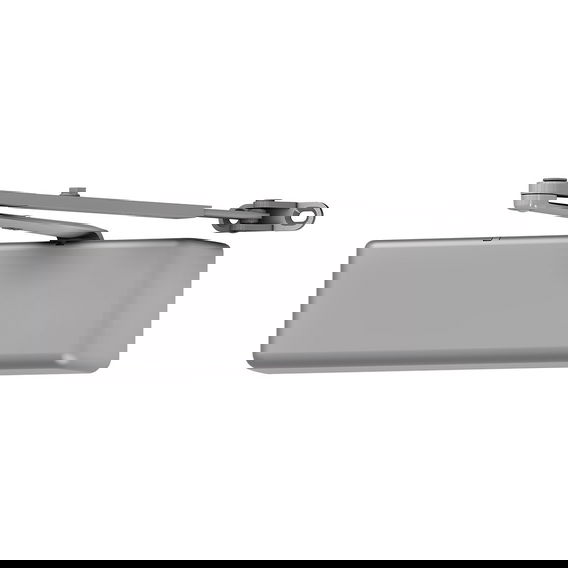

LCN 4040XP Series Heavy Duty Door Closer

LCN 4040XP Series Heavy Duty Door Closer

SKU:
LCN 4040XP
Part #:
Model:
LCN1004040XPREGALDEL
$492.08 - $713.22

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The 4040XP is LCN's most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. The patented Green Dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. Features a cast iron body, full complement bearing, 1-1/2" diameter piston, double heat treated pinion journal. Peel-n-stick template with 2-1/4" x 5" mounting hold pattern. 4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3. Closing power of 4040XP Series closers may be adjusted 50 percent.

Warranty Information

30 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Application
    For Interior/Exterior
  • BAA Compliant
    Yes
  • Back Check
    Adjustable
  • Closer Size
    Adjustable 1-6
  • Cold Weather Fluid
    Yes
  • Country of Origin
    USA
  • Degree Swing
    See Catalog
  • Depth
    2-1/4" Housing
  • Door Material
    Aluminum, Hollow Metal or Wood
  • Door Width
    24-60"(Interior Door), 24-48"(Exterior Door)
  • Duty Weight/Class
    Heavy Duty
  • Fasteners
    Self Reaming and Tapping Screws (SRT)
  • Grade
    Grade 1
  • Height
    3-1/2" Housing
  • Includes
    Standard Cylinder, Plastic Cover
  • Length
    12-1/4" Housing
  • Material
    Cast Iron Body/Cylinder, Forged Steel Arm, Full Plastic Cover
  • Mounting Location
    Push or Pull Side
  • Mounting Style
    Regular, Top Jamb, Parallel (arm depending)
  • Operating Temperature
    -30 to 120 degrees F (-35 to 49 degrees C)
  • Power
    Hydraulic Technology
  • Rated Opening Compliant
    Yes (if NOT hold open)
  • Series
    4040XP Series Surface Mount Door Closer
  • Standards
    ANSI A156.4, UL10C, UL Listed, cUL Listed, 100 hr Salt Spray
  • Through Bolts
    No
  • Type
    Surface
  • Unit of Measure
    Each
  • Weight
    13
