Product Overview

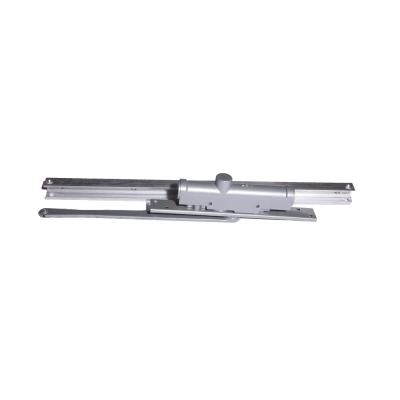

The concealed 3130 series is designed to mount in a 1-3/4" interior doors in medium to high-traffic areas. The single lever arm and roller assembly provides complete concealment. The 3130 series meets ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A concealed forged steel single-lever arm and a low-friction track and roller assembly for the 3130 Series create optimal door control, with separate regulation of the general closing speed and latching speed. The 3130 Series is UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for the closers include a cast iron cylinder, one-piece 1-1/8" forged steel piston, and high-efficiency, full-complement, low-friction bearing. Select closer based on width of door. 3130 Series cylinders available in size 1, 2, or 3.� Closing power of 3130 Series closers is not adjustable.
Warranty Information
15 Years Limited
Specifications
- ADA CompliantYes
- Additional InformationMinimum 4" Top Rail Required
- ApplicationInterior Doors
- Arm TypeSlide Track Arm Standard
- BAA CompliantYes
- Cold Weather FluidYes
- Country of OriginUSA
- Degree Swing140 Deg.
- Door MaterialAluminum, Hollow Metal or Wood
- Door Thickness1-3/4" Minimum
- FastenersSelf-reaming and tapping screws
- GradeGrade 1
- IncludesStandard Cylinder, Standard Cover, Standard Arm, Track Roller, Standard Track
- Mounting LocationIn Door
- Mounting StyleConcealed
- Operating Temperature-30 to 120 degrees F (-35 to 49 degrees C)
- PowerHydraulic Technology
- Rated Opening CompliantYes (if NOT hold open)
- Series3130 Series Concealed Door Closer
- StandardsANSI A156.4, UL & cUL Listed
- TypeConcealed Overhead, Standard Track
- Unit of MeasureEach
- Weight8
