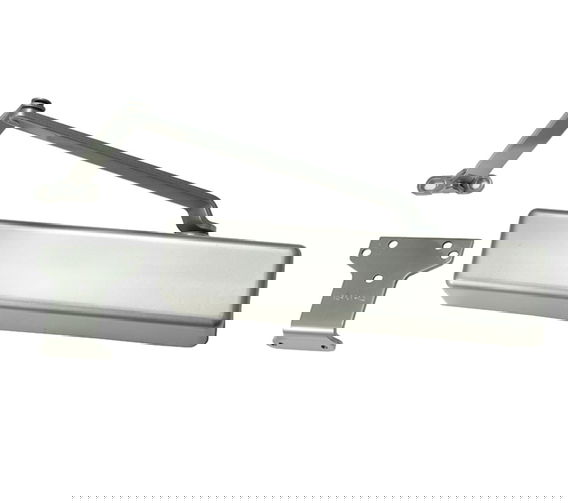

LCN 1460 Series Heavy Duty Door Closer
- SKU:
- LCN 1460
- Part #:
$329.75 - $607.34
Choose product options below to view Shipping Lead Time
Product Overview
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer meets ANSI/BHMA A156.4 and ADA reduced opening force requirements. Featuring a cast iron body with a full compliment bearing, 1-1/4" diameter piston, 3/4" diameter single heat treated pinion journal and all weather fluid. Peel-n-stick templates for fast and accurate installation. Spring size is adjustable from size 1 to 6 (includes the patented Green Dial) for interior doors up to 5' and exterior doors up to 4'.Resources
Warranty Information
30 Years LimitedSpecifications
-
- ADA Compliant
- Yes
-
- Application
- For Commercial and Institutional Doors, Interior/Exterior
-
- BAA Compliant
- Yes
-
- Back Check
- Adjustable
-
- Closer Size
- Adjustable 1-6
-
- Cold Weather Fluid
- Yes
-
- Country of Origin
- USA
-
- Degree Swing
- 100 Deg.
-
- Door Material
- Aluminum, Hollow Metal or Wood
-
- Door Thickness
- 1-3/4"
-
- Door Width
- 24-60"(Interior Door), 24-48"(Exterior Door)
-
- Duty Weight/Class
- Heavy Duty
-
- Fasteners
- Self Reaming and Tapping Screws (SRT)
-
- Grade
- Grade 1
-
- Hand
- Non-Handed
-
- Hold Open
- No
-
- Material
- Cast Iron Body, Forged Steel Arm
-
- Mounting Location
- Push or Pull Side
-
- Mounting Style
- Regular, Top Jamb, Parallel (arm depending)
-
- Operating Temperature
- -30 to 120 degrees F (-35 to 49 degrees C)
-
- Power
- Hydraulic Technology
-
- Rated Opening Compliant
- Yes (if NOT hold open)
-
- Series
- 1000 Series Surface Door Closers
-
- Size
- Housing: 12-1/4"L x 2-3/8"D x 2"H
-
- Standards
- ANSI A156.4, UL10C, 100 hr Salt Spray
-
- Stop
- Dead Stop
-
- Type
- Cush-n-Stop (solid forged steel main arm and forearm with stop in soffit shoe)
-
- Unit of Measure
- Each
-
- Weight
- 11
