NXT-3R

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

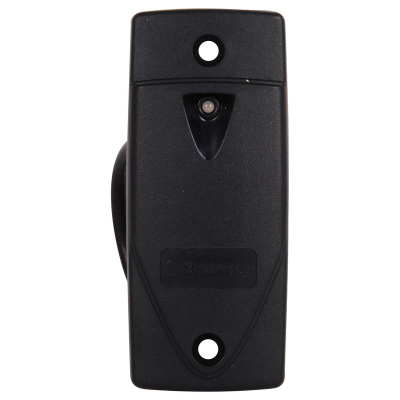

Keri Systems NXT Proximity Reader, Black

SKU:
NXT-3R
Part #:
Model:
KER100NXT3R
Was: $232.00
Now: $174.00

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Keri's NXT Series Proximity Readers are designed to blend aesthetics, read range performance and small package size with an extremely thin profile into a product that is priced significantly less than competing proximity readers. The readers are for use exclusively with Keri's revolutionary access control system based on the NXT Series of IP-Based Controllers. Encrypting identification data between the card and reader and supervising the reader from the controller to check for failure provides the most secure reader solution available. With an allowable cabling distance of 1000 feet (300m) from the controller, the NXT Series of readers dramatically reduces cabling costs when compared to traditional 6 or 7 conductor reader interfaces. The readers are compatible with all NXT Series cards and tags, with the ability to be firmware flashed to read HID 125 KHz credentials. The NXT-3R Mullion Reader, designed for mounting on metal window doorframes/mullions, is one of the smallest proximity readers on the market yet offers exceptional read range.

Warranty Information

Limited Lifetime

Specifications

  • Additional Information
    Reader Interface RS-485, 4 conductor, shielded or CAT-5, shielded
  • Application
    For Access Control Systems
  • Color
    Black
  • Depth
    0.625" (1.6cm)
  • Device Type
    Proximity Reader
  • Electrical Rating
    10 -14 VDC @ 85 mA typical
  • Height
    3.75" (9.5cm)
  • Includes
    Mounting Hardware
  • Lights
    Tri-Color LED (Red, Green, Amber, Off)
  • Material
    Plastic
  • Mounting Location
    Metal window or door frames
  • Operating Temperature
    -40-149 deg F (140-65 deg C)
  • Power
    Hardwired
  • Range
    Up to 4" Read Range
  • Reader Technology
    Proximity
  • Series
    NXT Series
  • Switch Type
    Momentary
  • Unit of Measure
    Each
  • Weight
    0.25
  • Width
    1.6" (4.1cm)
