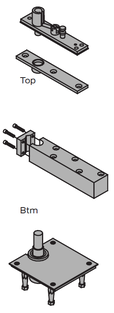

Ives 7259, Center Hung Pivot Set, 1000lbs
- SKU:
- IVES 7259 SET
- Part #:
$1,142.11 - $1,181.27
Out of Stock
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Product Overview
Pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure strength, this makes a pivot the ideal solution for heavy doors. Center and pocket pivots also provide an aesthetic option for an opening. Ives offers a complete line of pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. Maximum door load 1000 pounds. Recommended for use with 1-3/4" minimum door thickness. Not recommended for doors larger than 4'0" X 8'0". Easy installation, tilt on bearing and bearing pin. Adjustable floor to door clearance 3/16" to 3/4". Vertical adjustment range 3/16", with positive locking.Specifications
-
- BAA Compliant
- Yes
-
- Country of Origin
- Canada
-
- Door Height
- Max 8'
-
- Door Thickness
- 1-3/4"
-
- Door Width
- Max 4'
-
- Grade
- Grade 1
-
- Hand
- Non-Handed
-
- Includes
- Top and Bottom Pivot
-
- Material
- Cast Brass
-
- Max. Door Weight
- 1000lbs. Load
-
- Mounting Location
- Top/Bottom of Door
-
- Mounting Style
- Header Mount / Base Frame Mount
-
- Pivot Type
- Center Hung Set, Top and Bottom
-
- Rated Opening Compliant
- No
-
- Standards
- ANSI/BHMA A156.4 C07011
-
- Unit of Measure
- Each
