Product Overview
Pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure strength, this makes a pivot the ideal solution for heavy doors. Center and pocket pivots also provide an aesthetic option for an opening. Ives offers a complete line of pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. Maximum door load 1000 pounds. Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2". Vertical adjustment range 3/16", with positive locking.
Specifications
- BAA CompliantYes
- Country of OriginCanada
- Door Thickness1-3/4" Minimum
- Fire RatedUL10C Listed (3 hour)
- GradeGrade 1
- HandNon-Handed

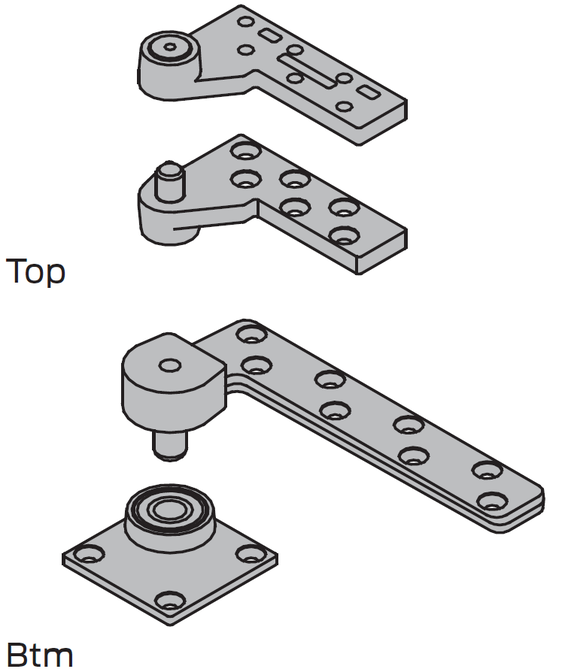

- IncludesTop and Bottom Pivot
- MaterialStainless Steel (304)
- Max. Door Weight1000lb Load
- Mounting LocationTop/Bottom of Door
- Pivot Type3/4" Offset
- Rated Opening CompliantYes
- StandardsANSI/BHMA A156.4 C07162
- Unit of MeasureEach
- Use With7230F INT, 7230FPT INT
