Product Overview

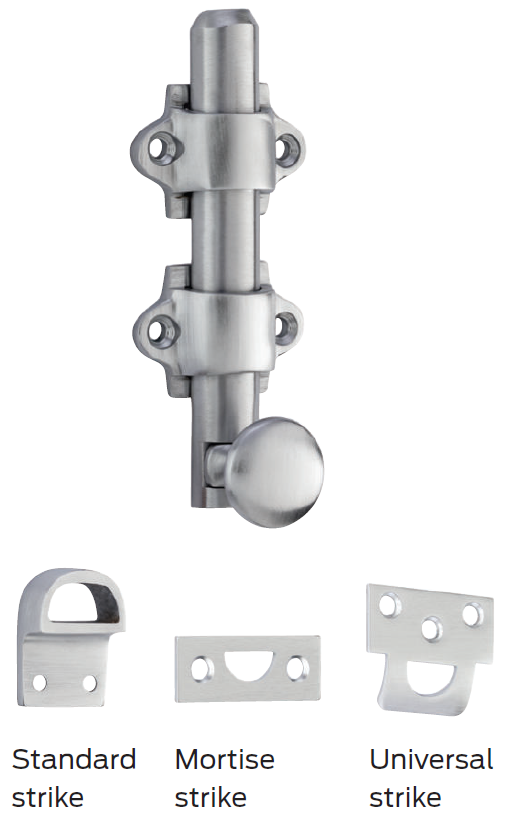

Practical, rugged, attractive bolt for application on Dutch doors as well as other areas. Chamfered rod end draws the two leaves of door tightly together. Sufficient tolerance provided in strike opening to allow for misalignment of door leaves and also prevents binding of bolt.
Specifications
- ApplicationDutch Doors
- Bolt Throw Length5/8"
- Device Length4-1/4" Rod
- FunctionChamfered rod end draws the two leaves of door tightly together
- HandNon-Handed
- Handle Type1" Dia. Knob
- Length4-3/8" Overall
- MaterialSolid Brass
- Mounting StyleSurface
- Projection1-1/8"
- ScrewsWood Screws Included
- Size5/8" Half Round Rod
- StandardsMeets ANSI/BHMA A156.16
- Strike TypeStandard Strike (SS), Mortise Strike (MS) & Universal Strike (US)
- Through BoltsNo
- TypeSurface
- Unit of MeasureEach
- Width1-5/8"
