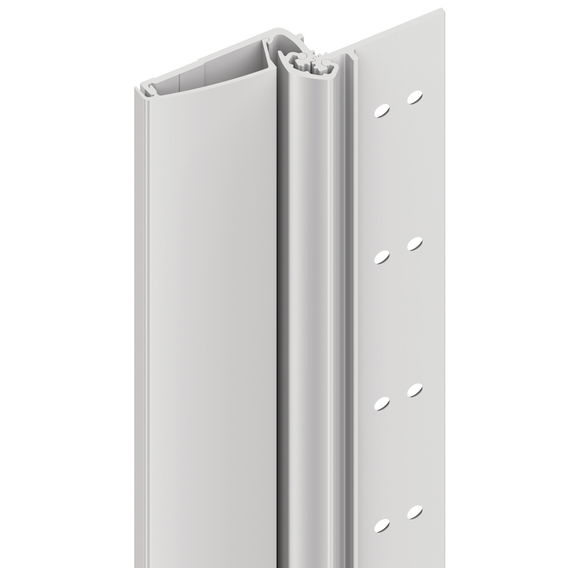

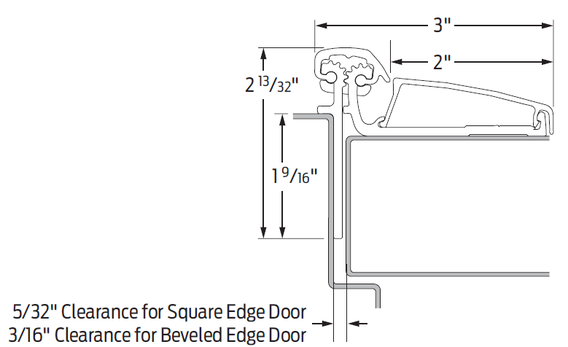

Ives 045XY Continuous Gear Hinge, Narrow Frame/Wide Door

SKU:045XY 83 US28

$772.00
$507.90
Out of stock
Product Overview
Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. Geared hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full-length cover channel and rotate on a series of bearings. The XY models feature lateral and vertical adjustment after the hinge is secured to door and frame, a center loaded bearing design to help reduce frame issues and has electric through-wire panel option with a continuous cover.
Warranty Information

Limited Lifetime

Specifications
  • ApplicationFor retrofit or new construction
  • Bearing TypeContinuous Gear
  • Corner TypeSquare
  • DesignPatented center loaded, interlocking bearing design
  • Device Length83"
  • Duty Weight/ClassHeavy Duty
  • GradeGrade 1
  • HandNon-Handed
  • Hardware FinishAluminum Painted 689/US28
  • Hinge TypeContinuous, Half Surface
  • Max. Door Weight450 pounds without reinforcing, 600 pounds with reinforcing
  • Max. Door Width4'
  • Pin Typenone
  • Rated Opening CompliantTested & approved UL 10C (90 minutes)
  • Screws12-24 x 3⁄4" Steel self drilling / self tapping Phillips-head screw
  • SeriesIves XY Series
  • StandardsANSI/BHMA 156.26
  • Tip StyleStandard
  • Unit of MeasureEach
