Product Overview

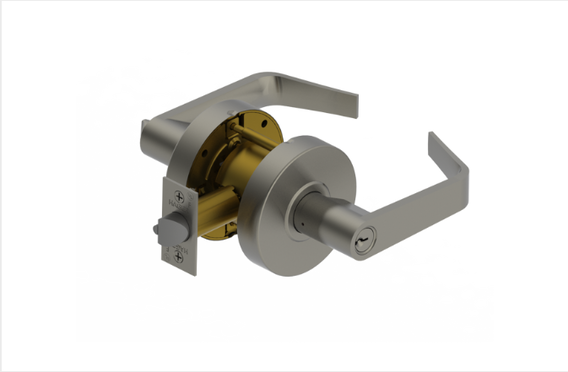

Standard duty, commercial, grade 2 cylindrical lockset. Entry (office) function, deadlocking latchbolt operated by lever from either side, except when turn button inside locks outside lever. Pushing turn button in locks outside lever, requiring the use of key outside to unlock. Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free. No exposed mounting screws. Removable thru-bolts; failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty. UL/cUL Listed for all functions up to 3 hours "A" label single doors.
Warranty Information
5 Years Limited
Specifications
- ActionDeadlocking latchbolt operated by lever from either side. Push turn button in locks outside lever, key or inside lever required to unlock. Push & turn locks outside lever, requiring key at all times. Inside lever always free.
- ADA CompliantYes
- BAA CompliantYes
- Backset2-3/4" (70mm) Standard
- BoltStainless Steel
- Bolt Throw Length1/2" (13mm)
- Country of OriginTaiwan
- Door Thickness1-3/8" - 2" (35mm - 51mm)
- Duty Weight/ClassStandard Duty
- Faceplate Size2-1/4" x 1-1/8" (57mm x 29mm), Square Corner
- Function53 - Entry (ANSI F109)
- GradeGrade 2
- HandNon-Handed
- Projection2-21/32" (67.5mm)
- Rated Opening CompliantYes
- Rose/Escutcheon Size3-11/32" (85 mm) Diameter
- Series2500 Series Cylindrical Lock
- StandardsANSI A117.1, UL/cUL, UL10C, UL10B, BHMA A156.2, EPD
- Strike4-7/8" x 1-1/4" (124mm x 32mm) Standard
- Strike StandardASA Strike
- Through BoltsYes
- Unit of MeasureEach
- Weight3.35
