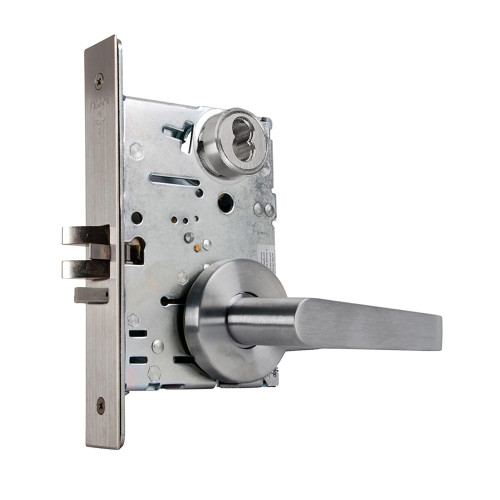

Falcon MA Series Heavy Duty Mortise Lockset, Classroom Function

Part #:
Model:: FAL100MA561BAG605

$300.15 - $355.40

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review

Reset Selections

This item is not eligible for return

Quantity

Adding to cart… The item has been added

California Prop 65 Warning

Product Overview

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Reversible handing without opening lock chassis case. All lever designs meet ADA requirements. Solid brass cylinder and plug. 1" stainless steel deadbolt with security roller pins and two-piece stainless steel anti-friction latch bolt. UL listed 3-hour fire door, A label. **Additional options may be available, inquire via chat.

Resources

Warranty Information

10 Years Limited

Specifications

ADA Compliant

Yes
Action

Latch bolt operated by lever unless outside lever is locked from outside by key. If outside lever locked, latch bolt retracts by key outside, or inside lever. Auxiliary dead latch deadlocks latchbolt when door is closed.
Application

For high-traffic, high abuse locations; office, hospital, education or other commercial applications.
Backset

2-3/4"
Bolt

Stainless Steel
Bolt Throw Length

3/4" Latchbolt, 1" Deadbolt
Door Thickness

1-3/8 - 1-7/8"
Duty Weight/Class

Heavy Duty
Faceplate Size

1-1/4" x 8"
Fire Rated

Non Rated
Function

Classroom (ANSI F05)
Grade

Grade 1
Hand

Non-Handed
Handle Type

Lever
Material

Cold-formed steel, zinc plated with dichromate for corrosion resistance
Rated Opening Compliant

Yes
Series

Falcon MA Series Mortise Locks
Standards

ANSI/BHMA A156.13, Series 1000
Strike Height

4-7/8"
Strike Width

1-1/4"
Through Bolts

Yes
Thumbturn

Yes, for deadbolt operation
Unit of Measure

Each
