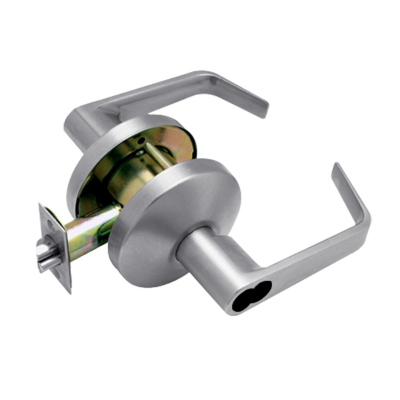

The B Series medium-duty lever lock offers tough, reliable performance and is ideal for new construction projects in retail, industrial, multi-family, government and military applications. It is a certified ANSI/BHMA A156.2 Series 4000 Grade 2 lock and exceeds the standard for durability and reliability. It is UL listed for 3-hour fire door, A label and meets ADA standards. In retrofit situations, the B Series offers interchangeable cores for quick and convenient re-keying and is compatible with cores built by other manufacturers. Lever trim has individual heavy-duty springs for lever return and to prevent lever sag. Trim is through-bolted with screws coated with thread sealant to provide strength and prevent the lock from loosening. Does not require field disassembly for re-handing, allowing for easy installation and maintenance. UL listed for 3-hour fire door, A label.
Resources
Warranty Information
10 Years Limited
Specifications

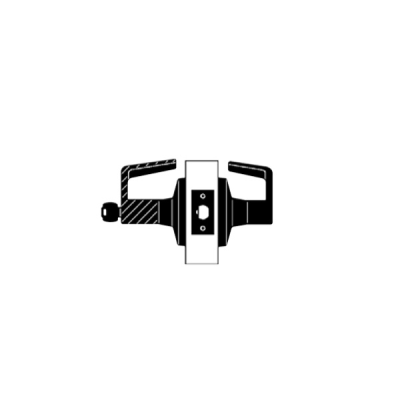

- ActionLatch bolt operated by lever/knob inside or key outside. Outside lever/knob is inoperable. Inside always free for immediate egress.
- ADA CompliantYes
- ApplicationNew construction projects in retail, industrial, multi-family, government and military applications
- BAA CompliantNo
- Backset2-3/4"
- Bolt Throw Length1/2"
- Country of OriginTaiwan
- Door MaterialWood or Metal
- Door Thickness1-3/4 - 2-1/4"
- Duty Weight/ClassMedium Duty
- Faceplate Size2-1/4" x 1-1/8"
- Fire RatedNon Rated
- FunctionStoreroom (ANSI F86)
- GradeGrade 2
- HandNon-Handed
- Handle TypeLever
- Latch NumberA57435-00D
- Latch TypeDeadlatch
- MaterialBrass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Projection3-1/4"
- Rated Opening CompliantYes
- Rose/Escutcheon DesignStandard Rose
- Rose/Escutcheon Size3-1/2"
- ScrewsCombination for wood and metal
- SeriesFalcon B Series Cylindrical Locks
- StandardsANSI/BHMA A156.2 Series 4000,UL 10B, 10C
- Strike Height4-7/8"
- Strike Number5164
- Strike TypeANSI, Curved Lip
- Strike Width1-1/4"
- Through BoltsYes
- Unit of MeasureEach
- Weight5
