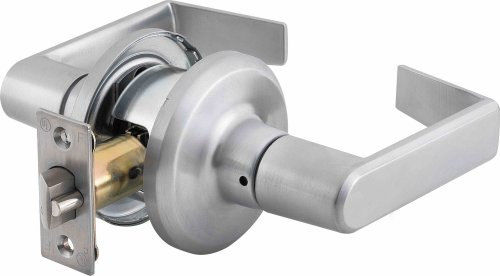

Dormakaba (Stanley) QTL200 Series, Grade 2 Tubular Lock, Passage (F75) Function

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Dormakaba (Stanley) QTL200 Series, Grade 2 Tubular Lock, Passage (F75) Function

SKU:
QTL230E626SA118F
Part #:
Model:
7253609
Was: $171.00
Now: $83.98

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Dormakaba's Commercial Hardware QTL200 Series provide a solid value lever lock for light commercial applications. With a solid metal construction, these tubular locksets are available in a variety of functions for all types of interior doors. Tested to meet Grade 2 specification of 400,000 cycles. Heavy-duty torsion springs provide longer performance life and prevent lever sag. The 1/2" (13mm) latch bolt is made of stainless steel black powder metallurgy for enhanced durability and strength. UL/cUL Listed (3 hours) for "A" label single-door applications (4' x 8') (1.219m x 2.438m).

Warranty Information

Limited Lifetime

Specifications

  • ADA Compliant
    Yes
  • Action
    Both levers always unlocked and always free for immediate ingress and egress.
  • BAA Compliant
    No
  • Backset
    2-3/8"(60mm) or 2-3/4"(70mm)
  • Bolt
    Steel
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    Taiwan
  • Device Length
    4.1" (104.2mm) Lever
  • Door Thickness
    1-3/8" to 1-3/4"
  • Duty Weight/Class
    Standard Duty
  • Fasteners
    Included
  • Fire Rated
    Non Rated
  • Function
    Passage (F75)
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Handle Type
    Lever
  • Keyway
    non-keyed
  • Latch Number
    SA
  • Latch Type
    Adjustable Square
  • Lever/Knob Design
    "E" Sierra
  • Material
    Brass; Bronze; Steel
  • Projection
    2-5/8" (67mm)
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Size
    3" (75mm) Diameter
  • Screws
    Concealed
  • Series
    QTL 200 Series, Grade 2 Standard Duty Tubular Locks
  • Standards
    ANSI; BHMA; UL
  • Strike Number
    118F
  • Strike Size
    1-1/8" x 2-1/4"
  • Strike Type
    ANSI
  • Through Bolts
    Yes
  • Unit of Measure
    Each
  • Weight
    2.3
