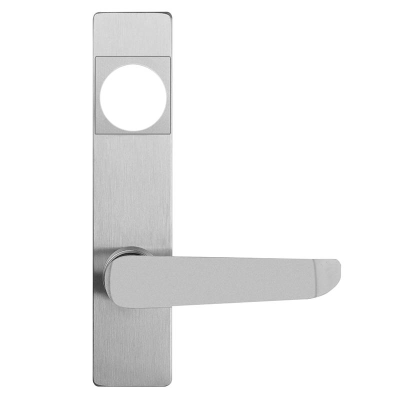

Detex BN Exit Device Trim for V40 and V50 Series Exit Devices

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Detex BN Exit Device Trim for V40 and V50 Series Exit Devices

SKU:
DTX BN
Part #:
Model:
DTX08BN689
Was: $372.00
Now: $245.52

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door.

Warranty Information

10 Years Limited

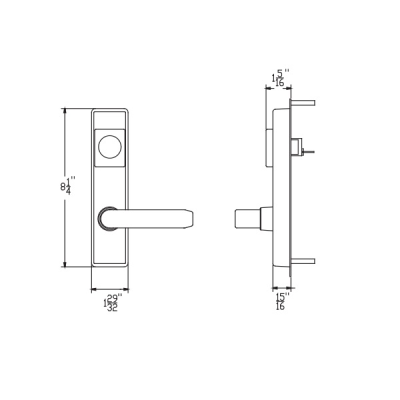

Specifications

  • ADA Compliant
    Yes
  • Cylinder
    Not Included (mortise required)
  • Depth
    1-5/16"
  • Device Type
    Trim
  • Door Thickness
    1-3/4 - 2-1/4"
  • Duty Weight/Class
    Heavy Duty
  • Fire Rated
    Non Rated
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Handle Type
    Lever
  • Height
    8-1/4"

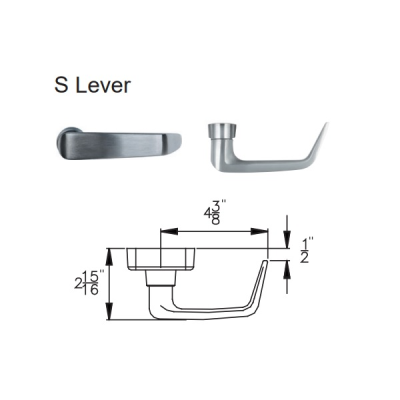

  • Lever/Knob Design
    S Lever
  • Material
    Zinc Casting
  • Projection
    2-15/16"
  • Rated Opening Compliant
    No
  • Standards
    ANSI/BHMA A156.3
  • Unit of Measure
    Each
  • Use With
    Detex V40 Series Rim and V50 Series Surface Vertical Rods
  • Width
    1-29/32"
