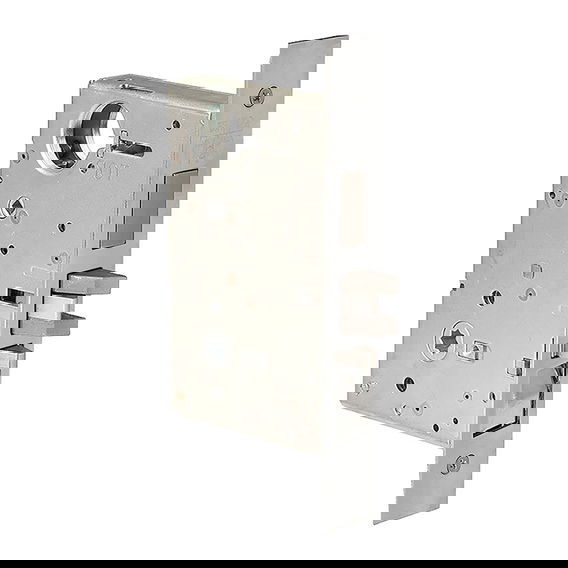

Corbin Russwin ML2067 Heavy Duty Mortise Lockset, Lockbody Only, Apartment/Dormitory (F20) Function
Corbin Russwin ML2067 Heavy Duty Mortise Lockset, Lockbody Only, Apartment/Dormitory (F20) Function

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Corbin Russwin ML2067 Heavy Duty Mortise Lockset, Lockbody Only, Apartment/Dormitory (F20) Function

SKU:
CR ML2067 LB
Part #:
Model:
COR300ML2067KK605
Was: $675.00
Now: $435.38

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added

Related Products

Product Overview

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications. Can be used with new or existing Corbin Russwin key systems. Provides life safety and security in a single door prep, saving the additional cost of a deadlock. Through-bolted trim designs for proper alignment and increased security.

Resources

Warranty Information

10 Year Limited

Specifications

  • Action

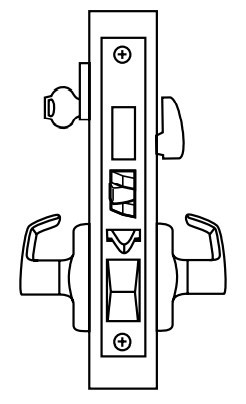

    Latchbolt by grip either side, unless outside grip locked. Deadbolt by key/thumbturn. Latch/deadbolt retract by key when outside grip locked. Inside grip retracts latchbolt & deadbolt; outside grip locked. Outside grip unlocked by toggle-action stop.
  • BAA Compliant
    Yes
  • Backset
    2-3/4" (70mm)
  • Bolt
    2-Piece Mechanical with Anti-Friction Insert, 5/8" (16 mm) x 1" (25 mm) Latchbolt; One-Piece Stainless Steel, 19/32" (15 mm) x 1-1/4" (32 mm) Deadbolt
  • Bolt Throw Length
    3/4" (19mm) Latchbolt, 1" (25.5mm) Deadbolt
  • Country of Origin
    USA
  • Door Thickness
    1-3/4"
  • Duty Weight/Class
    Heavy Duty
  • Face Shape
    Accommodates Flat Doors and Doors Beveled 1/8" (3 mm) in 2" (51 mm)
  • Faceplate Depth
    3/32" (2 mm)
  • Faceplate Height
    8" (203 mm)
  • Faceplate Width
    1-1/4" (32 mm)
  • Fire Rated
    Non Rated
  • Function
    Apartment/Dormitory (F20)
  • Grade
    Grade 1
  • Hand
    Field Reversible
  • Includes
    Lock Case, Armored Front, Strike and Screw Pack
  • Keyway
    Less Cylinder
  • Rated Opening Compliant
    Yes
  • Screws
    Wood/Machine Screws
  • Series
    Corbin Russwin ML2000 Series Mortise Locks
  • Size
    Lock Case: 5-7/8" (149 mm) x 4" (102 mm) x 15/16" (24 mm)
  • Standards
    ANSI/BHMA A156.13 Series 1000, Meets A117.1 Accessibility Code, Federal Meets FF-H-106C
  • Strike
    ANSI Straight Lip
  • Strike Height
    4-7/8" (124mm)
  • Strike Number
    236L72018
  • Strike Size
    1-1/8" (29 mm) Lip to Center
  • Strike Type
    ASA
  • Strike Width
    1-1/4" (32 mm)
  • Type
    Lockbody Only
  • Unit of Measure
    Each
