Learn MoreProduct Overview

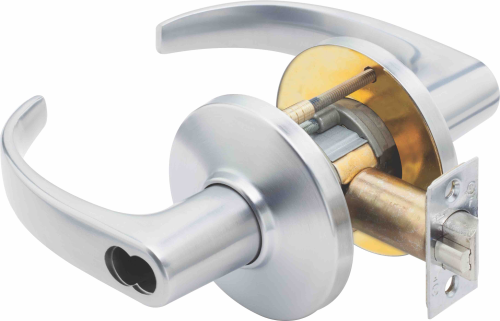

When you need simple, safe and dependable protection, there's no better choice than the 9K Series from BEST. The 9K is one of the toughest heavy-duty cylindrical locks on the market. Rose locking pin and rose assembly design offers great torque resistance. It prevents the locking pin from twisting, bending, or breaking under attack. The innovative design of the slotted key release cam and locking lug assembly create maximum attack resistance. Even though damaged, the lock still allows key access. In addition, the lever is fully functional from the inside. The hub-mounted torsion spring and strong retractor springs help prevent lever sag and offer a smooth and snappy operation. Strong through-bolt mounting studs increase torque resistance. Strong retractor springs provide resistance to lever sag. The outside lever sleeve is a seamless one piece construction made of a hardened steel alloy that provides additional reinforcement in the locking lug slot. Listed by UL for use on 3 Hr, A label for single or double swinging doors.
Warranty Information
10 Years Limited
Specifications
- ActionLatch operated by rotating the inside lever, rotating the outside lever when not locked by key or push button.
- ADA CompliantYes
- BAA CompliantYes
- Backset2-3/4"
- BoltDeadlocking latch
- Bolt Throw Length9/16" (14mm)
- Country of OriginUSA
- CylinderSFIC (Not Included)
- Device Length5-3/8" Lever
- Door Thickness1-3/4" to 2-1/4"
- Duty Weight/ClassHeavy Duty
- Fastenersincluded
- FunctionDormitory (F90)
- GradeGrade 1
- HandField Reversible
- Keying7-pin housing accepts all BEST cores
- Lock Face Size2-1/4" x 1-1/8" beveled
- MaterialComponent parts include brass or bronze. Internal parts are brass or zinc dichromate steel.
- Projection2-3/4"
- Rated Opening CompliantYes
- ScrewsConcealed
- Series9K Series Heavy Duty Cylindrical Locks
- SizeCylindrical case is 2-1/16" diameter
- StandardsANSI; BHMA; UL; TUV
- Strike TypeCurved Lip
- Through BoltsYes
- Unit of MeasureEach
- Weight4.5
