Product Overview

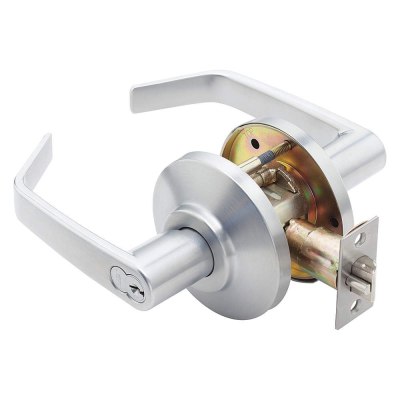

Our 7KC series offers the quality and performance you expect from BEST for standard traffic applications. With strength exceeding ANSI Grade 2 requirements, and features designed to resist attacks, promote product life, and match current architectural trends, the 7KC series delivers exceptional results for moderate traffic points. The inside rose is a "snap-on" design requiring no exposed mounting screws. Through-bolt mounting studs increase torque resistance. Hub torque spring provides extra resistance to lever sag. The 7KC series locks are listed by UL for use on 3 Hr, A label for single (4'x8') doors. No core, lock will not work properly without core; core (such as a BEST 1C Series core) must be purchased separately.
Warranty Information
3 Years Limited
Specifications
- ActionLatch operated by turning key in outside lever, rotating inside lever.
- ADA CompliantYes
- BAA CompliantNo
- BoltDeadlocking latch
- Bolt Throw Length1/2" (13mm)
- Country of OriginTaiwan
- CylinderSFIC (Not Included)
- Device Length5-1/4" Lever
- Door Thickness1-3/8" to 2"
- Duty Weight/ClassMedium Duty
- Fastenersincluded

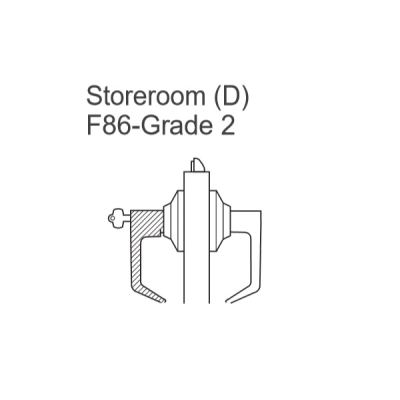

- FunctionStoreroom (F86)
- GradeGrade 2
- HandField Reversible
- Keying7-pin housing accepts all BEST cores
- Lock Face Size2-1/4" x 1-1/8" x 5/32"
- MaterialComponent parts include brass or bronze. Internal parts are brass or zinc dichromate steel.
- Projection2-1/2"
- Rated Opening CompliantYes
- Rose/Escutcheon Design"D" Style
- Rose/Escutcheon Size3-1/2" Diameter
- ScrewsConcealed
- Series7KC Series Medium Duty Cylindrical Locks
- SizeCylindrical case is 2-1/16" diameter
- StandardsANSI; BHMA; ASTM; UL
- Strike TypeCurved Lip
- Through BoltsYes
- Unit of MeasureEach
- Weight4.3
