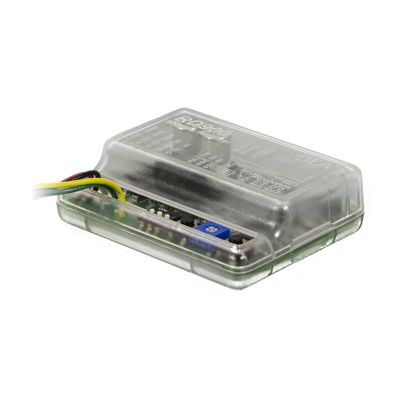

BEA 10RD900 Digital Receiver, 900 MHz

SKU:
10RD900
Part #:
Model:
BEA10010RD900
Was: $79.78
Now: $59.48

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

BEA's 900 MHz compact transmitters and receiver allow wireless activation of any door control. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations. Performs up to 500 feet line of sight. Works through Low-E glass. Frequency hopping allows consistent transmission in areas with other 900 MHz devices. Up to four separate wireless receivers can be activated by a single transmitter. Multi-color LEDs on receiver provide installer with visual notification of signal strength and activation status. Red LED indicator on transmitter confirms transmission and battery life. A maximum of 75 transmitters can be programmed to one receiver. Transmits a unique rolling code each time the switch is closed.

Warranty Information

3 Years Limited

Specifications

  • Action
    908-918 MHz Operating Frequency; Digital Radio Control
  • Additional Information
    Up to 75 Transmitters per Receiver
  • Contact Rating
    1.0A@30VDC; 0.3A@60VDC; 0.5A@125VAC
  • Country of Origin
    China
  • Depth
    2"
  • Height
    3/4"
  • Operating Temperature
    14-131 deg F (-10-55 deg C)
  • Power
    Hardwired
  • Standards
    FCC, IC
  • Unit of Measure
    Each
  • Voltage Rating
    12-24 VAC/DC Input
  • Width
    2-1/2"
