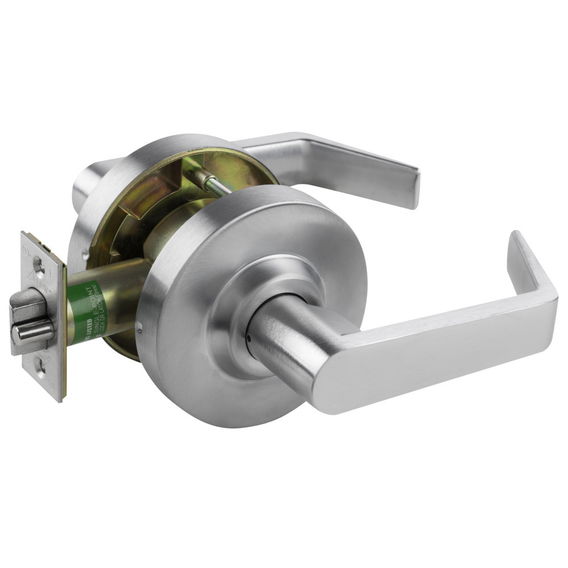

Arrow QL Series Cylindrical Lockset, Privacy Function
Arrow QL Series Cylindrical Lockset, Privacy Function

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Arrow QL Series Cylindrical Lockset, Privacy Function

SKU:
ARR QL02/72
Part #:
Model:
ARRQL02SR03
Was: $307.00
Now: $161.18

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Chromium, Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

The QL Series is a robust Grade 1 lockset offers a rigid lever or a cluched, freewheeling lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications. All Arrow QL Series locks are UL and cUL listed for use on 3 hour, A label or lesser doors. The lock chassis is cold rolled steel with zinc dichromate finish for corrosion resistance. Locksets are non-handed and have no exposed screws. 161 prep for retrofit and secure installation.

Resources

Warranty Information

10 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Push and turn button inside, key outside
  • Additional Information
    Guarded Latchbolt on All Locking Functions
  • Backset
    2-3/4" (70 mm)
  • Bolt
    Stainless Steel
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    South Korea
  • Door Material
    Wood or Metal
  • Door Thickness
    1-3/8 to 1-3/4" (34.93 to 44.45 mm) Standard
  • Fire Rated
    No
  • Function
    Privacy
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Includes
    Mounting Hardware
  • Latch Number
    Q73
  • Latch Type
    Springlatch
  • Length
    4-3/4" (120.65 mm) Lever
  • Lever/Knob Design
    Sierra Lever
  • Lock Face Size
    2-1/4" x 1-1/8"
  • Lock Prep
    161 Prep
  • Material
    Pressure Cast Zinc Lever, Wrought Brass Rose
  • Mounting Style
    Requires Standard 2-1/8" (53.97 mm) Bore Through Door
  • Projection
    2-17/32" (64.5 mm) Lever
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Size
    3-11/32" (84.8 mm)
  • Screws
    Wood and machine screws included
  • Series
    Arrow QL Series Cylindrical Lever Locks
  • Standards
    ANSI/BHMA A156.2 Series 4000, UL Listed Latch
  • Strike Height
    4-7/8" (123.83 mm)
  • Strike Number
    306
  • Strike Size
    1-1/4" (31.75 mm) Lip to Center Dimension
  • Strike Standard
    ANSI 115.2
  • Strike Type
    ANSI Strike
  • Strike Width
    1-1/4"
  • Unit of Measure
    Each
  • Weight
    4.4
