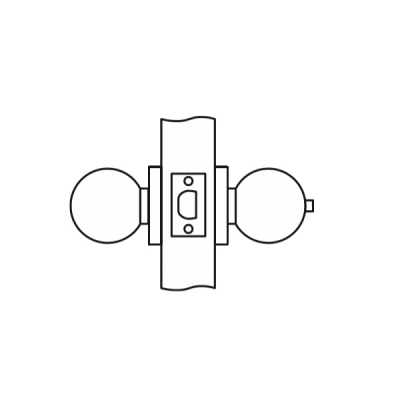

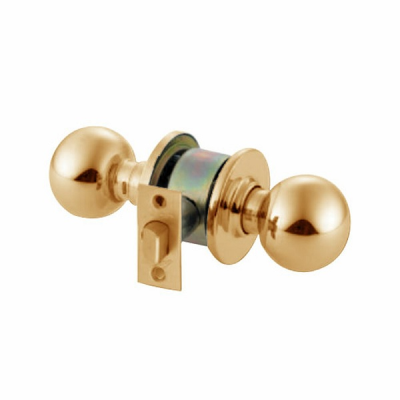

Arrow MK Series Cylindrical Lockset, Privacy Function
Arrow MK Series Cylindrical Lockset, Privacy Function

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Arrow MK Series Cylindrical Lockset, Privacy Function

SKU:
ARR MK02
Part #:
Model:
ARR100MK02TA10
Was: $127.00
Now: $81.92

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

Arrow MK Series offers the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade 1 hardware may not be necessary. All Arrow MK Series locks are UL and cUL listed for use on 3 hour, A label or lesser doors. The lock chassis is cold rolled steel with zinc dichromate finish for corrosion resistance. Locksets are non-handed and have no exposed screws. If necessary, the cylinder shall be changed by removing the knob. 161 prep for retrofit and secure installation.

Resources

Warranty Information

3 Years Limited

Specifications

  • ADA Compliant
    No
  • Action
    Push and turn button inside, key outside
  • Backset
    2-3/8" (60.32 mm)
  • Bolt
    Brass Latchbolt
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    Mexico
  • Door Material
    Wood or Metal
  • Door Thickness
    1-3/8 to 1-3/4" (34.92 to 44.45 mm)
  • Fire Rated
    No
  • Function
    Privacy
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Includes
    Mounting Hardware
  • Latch Number
    114
  • Latch Type
    Deadlatch
  • Lock Face Size
    2-1/4" x 1-1/8"
  • Lock Prep
    161 Prep
  • Mounting Style
    Requires standard 2-1/8" (53.97 mm) Bore Through Door
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Design
    A Wrought
  • Rose/Escutcheon Size
    2-9/16" (65.08 mm)
  • Screws
    Wood and machine screws included
  • Series
    Arrow MK Series Cylindrical Locks
  • Standards
    ANSI/BHMA A156.2 Series 4000
  • Strike Height
    2-3/4"
  • Strike Number
    300
  • Strike Size
    1-1/4" (31.75 mm) Lip to Center Dimension
  • Strike Standard
    ANSI A115.3
  • Strike Type
    Standard "T" Strike
  • Strike Width
    1-1/8"
  • Unit of Measure
    Each
  • Weight
    1.5
