Altronix SMP3PM Power Supply/Charger, Single Output, 12/24VDC@2.5A (Board Only)

SKU:
SMP3PM
Part #:
Model:
ALT100SMP3PM
Was: $108.27
Now: $81.21

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

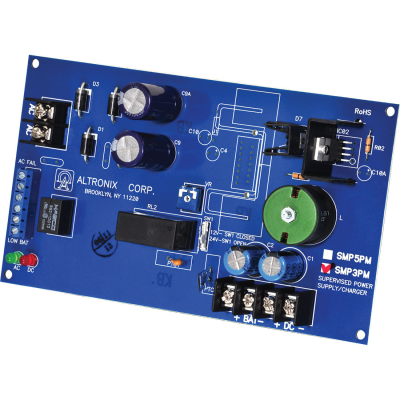

Altronix SMP3PM power supply/charger converts a low voltage AC input into a 12 VDC or 24 VDC output @ 2.5A continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power. Filtered and electronically regulated output. Short circuit and thermal overload protection. Built-in charger for sealed lead acid or gel type batteries (not included). Automatic switch over to stand-by battery when AC fails. Battery short circuit protection (circuit breaker). AC fail and low battery supervision (form "C" contacts). AC input and DC output LED indicators.

Warranty Information

Limited Lifetime

Specifications

  • Battery
    Not Included
  • Country of Origin
    USA
  • Depth
    1.35"
  • Device Type
    Power Supply/Charger
  • Electric Options
    Single Output
  • Height
    4.05"
  • Includes
    Battery Leads, Tape
  • Material
    Phenolic/Fiberglass
  • Operating Temperature
    32-120 deg F (0-49 deg C) with Relative Humidity 85 +/- 5 percent
  • Operating Voltage
    16-28 VAC Input; 12/24 VDC Output
  • Output Current
    2.5 A
  • Standards
    RoHS
  • Unit of Measure
    Each
  • Weight
    0.5
  • Width
    7"
