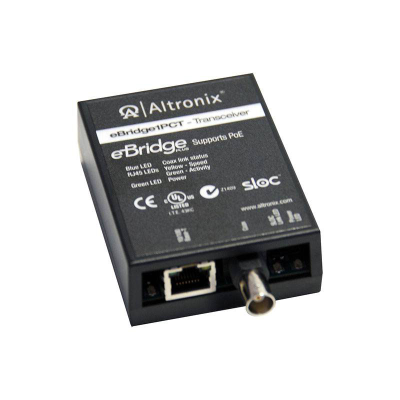

Altronix EBRIDGE1PCT EoC Single Port Transceiver (requires compatible receiver)

Product Overview

Altronix eBridge1PCT EoC hardened transceiver transmits data at 25Mbps, Full duplex over coax cable to a paired eBridge receiver (not included) and provides power in a PoE-compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE power over the same coax cable to the eBridge1PCT transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 500m. Maximum range from headend to the PoE camera/device is 700m, taking into consideration that up to 100m of structured cable may be deployed at each end. PoE compliant to IEEE 802.3af (15W) from eBridge receivers. Power consumption (under maximum load) is 1.5W. Connectivity is RJ45, auto-crossover. Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment this supports megapixel, HD720, HD1080. LED indicators for coax link connection, IP link status and power.
