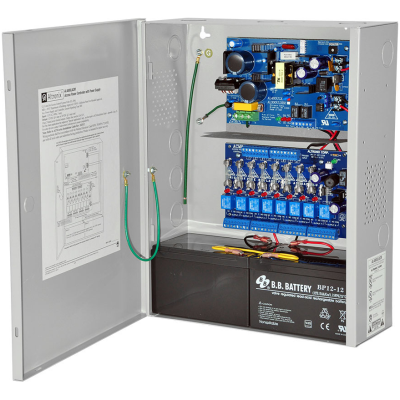

Altronix AL400ULACM Access Power Controller with Power Supply/Charger, 8 Fused Outputs, 12/24VDC@4A

SKU:
AL400ULACM
Part #:
Model:
ALT100AL400ULACM
Was: $559.58
Now: $419.69

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Altronix AL400ULACM converts a 115 VAC 60 Hz input into eight (8) independently controlled 12 VDC or 24 VDC fail-safe/fail-secure outputs with a total of @ 12 VDC or 3A @ 24 VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an access control system, card reader, keypad, push button, PIR, etc. This unit will route power to a variety of access control hardware devices including maglocks, electric strikes, magnetic door holders, etc. The outputs will operate in both fail-safe/fail-secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock/accessory power. The FACP Interface enables emergency egress, alarm monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Warranty Information

Limited Lifetime

Specifications

  • Battery
    Up to two (2) 18AH / 12VDC, not included
  • Color
    Gray
  • Country of Origin
    USA
  • Depth
    4.5"
  • Device Type
    Access Power Controller
  • Electric Options
    11 Inputs; 8 Outputs
  • Height
    15.5"
  • Includes
    Battery Leads, Cam Lock
  • Input Current
    3.5 A
  • Material
    Steel
  • Operating Temperature
    32-120 deg F (0-49 deg C) with Relative Humidity 85 +/- 5 percent
  • Operating Voltage
    115 VAC Input; 12/24 VDC Output
  • Output Current
    4 A/3 A
  • Size
    1.125" x 1.375" Knockout
  • Standards
    cUL, RoHS, UL294, CSA Standard C22.2 No.205-M1983, CSFM, MEA - NYC Approved
  • Unit of Measure
    Each
  • Weight
    12
  • Width
    12"
