Alarm Lock Trilogy DL2700WP Electronic Keyless Access Cylindrical Lock, Weatherproof, 100 Users *FOR QUOTE ONLY*

SKU:AL DL2700WP

Create Quote for Additional Product Information*
(No Reviews yet)
Write a review
Reset Selections
Product Overview

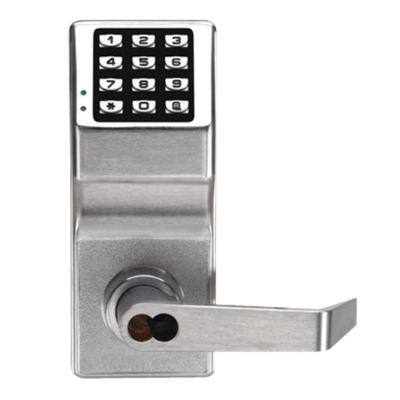

The Trilogy DL2700 series is Alarm Lock's most popular standalone pushbutton cylindrical lock. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. The outside lever is free turning in the locked position. Entering the access code, key bypass or remote bypass allows the lever to retract latch. Inside lever always instant egress. The DL2700 features Grade 1 durability, dependable lockset with rugged clutch mechanism, plus a vandal-proof all metal keypad. The 12 button keypad is programmable for up to 100 different user codes (3-6 digits) with multi-level access functions. Easy to install in about an hour, retrofits cylindrical knob sets and digital locks using standard ANSI 161 Series Prep, modified by adding through-bolt holes. Standalone battery operated; 5 AA batteries rated at 200,000 cycles.

Resources

Specifications
  • ActionClutch mechanism permits turning lever without retracting latch. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress
  • ADA CompliantYes
  • ApplicationFor Schools, Healthcare, Pharmacies, Rental Properties, Offices, Retail and Airports
  • Backset2-3/4" (70mm)
  • Battery5 AA Alkaline Batteries, Included
  • BoltSolid Brass, Deadlocking
  • Bolt Throw Length1/2" (13mm)

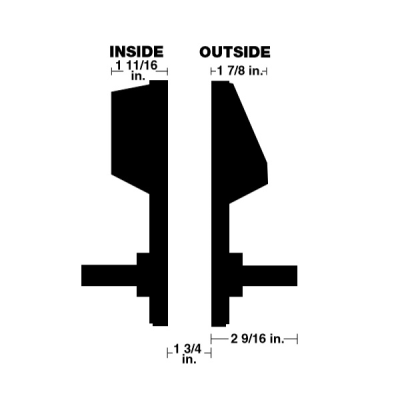

  • Depth1-11/16" Inside; 1-7/8" Outside
  • Device TypeWeatherproof for Exterior Use
  • Door Thickness1-5/8 In. to 1-7/8 In.
  • Duty Weight/ClassHeavy Duty
  • Faceplate Size1-1/8" x 2-1/4"
  • Fire Rated180 Min
  • FunctionElectronic Keyless Access, Stand Alone
  • GradeGrade 1
  • HandNon-Handed
  • Handle TypeLever

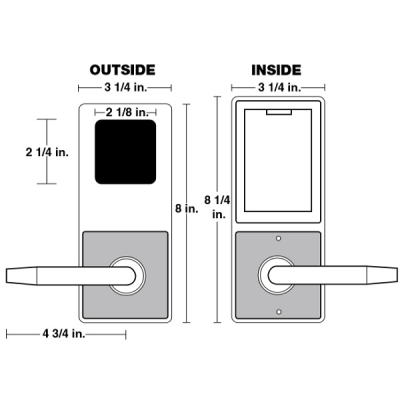

  • Height8" Inside; 8-1/4" Outside
  • Keypad Type12 Button Programmable
  • KeysAll metal
  • LightsLED
  • Lock Prep161 Prep
  • MaterialWrought Brass Latch Front, Solid Brass Cylinder, Bronze Base
  • Number of Users100
  • Operating Temperature-31-151 deg F (-35-66 deg C)
  • PowerBattery
  • Programmer/ProgrammingKeypad
  • Projection2-9/16"
  • Rated Opening CompliantYes
  • Reader TechnologyKeypad Only
  • ScrewsFor Wood and Metal Included
  • SeriesTrilogy T2 DL2700
  • StandardsUL Listed, CE, FCC
  • Strike1-1/8" x 2-3/4" T Strike and 1-1/4" x 4-7/8" ASA Strike Included
  • Through BoltsYes
  • TypeCylindrical Lock
  • Unit of MeasureEach
  • Weight9
  • Width3-1/4"
