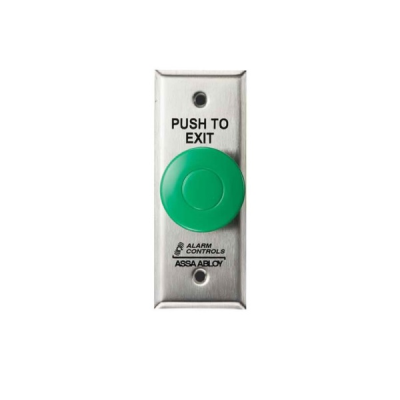

Alarm Controls ASP-14N, Pneumatic Time Delay, Narrow, 1-1/2 in. Push Button

SKU:: ASP-14N-G

Part #:

Was: $417.00

Now: $337.77

(No reviews yet) Write a Review

Related Products

ASP

Alarm Controls ASP-14, Pneumatic Time Delay, 1-1/2 in. Push Button

Was: $362.00

Now: $293.22

Alarm Controls

Alarm Controls TS-14, Pneumatic Time Delay, 1-1/2 in. Push Button

Was: $403.00

Now: $298.65

California Prop 65 Warning

Alarm Controls

Alarm Controls TS-60, Pneumatic Time Delay, Push Button

Was: $330.00

Now: $267.30

California Prop 65 Warning

ASP

Alarm Controls ASP-2-2, DPDT Contact, Push Button

Was: $90.00

Now: $72.90

California Prop 65 Warning

Alarm Controls

Alarm Controls EB-1, 1-1/2 in. Push Button

Was: $128.00

Now: $103.68

California Prop 65 Warning

ASP

Alarm Controls ASP-2T, SPDT Contact, Push Button, Electronic Timer

Was: $175.00

Now: $141.75

California Prop 65 Warning

TS-2 — Add to Cart The item has been added

Alarm Controls

Alarm Controls TS-2, SPDT Contact, Push Button

Was: $70.00

Now: $51.87

California Prop 65 Warning

Alarm Controls

Alarm Controls TS-2-2, DPDT Contact, Push Button

Was: $95.00

Now: $70.40

California Prop 65 Warning

Alarm Controls

Alarm Controls DE-1, Delayed Egress Timer

Was: $330.00

Now: $267.30

California Prop 65 Warning

Product Overview

The request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired. Pneumatic time delay is adjustable 2-60 sec. Does not require external power for operation. Timer life: up to 1 million operations. Plate screened "PUSH TO EXIT" for easy to follow egress instructions.

Specifications

Action

1 Normally Opened/1 Normally Closed Contact Pair
Additional Information

Timer life up to 1 million operations
Application

For Access Control Systems, Electro-Magnetic Locks, Exit REX
Button Text

Push to Exit
Configuration/
Connectors

Screw Terminal
Contact Rating

10 A @ 120 VAC
Contact Type

(1) N/O and (1) N/C
Delay

Adjustable 2-60 Seconds
Depth

2-1/4" Switch depth behind plate
Electrical Rating

12-24 VAC/DC
Faceplate Height

5"
Faceplate Width

1-3/4"
Hardware Finish

Satin Stainless Steel 630/US32D
Includes

Face Plate, Pneumatic Switch
Material

302 Stainless Steel
Number of Gang

1
Operating Temperature

15 to 120 degrees F
Power

Does not require external power for operation
Relay

Delayed Pneumatic
Size

1-1/2" Diameter Button
Standards

UL 294 Listed
Unit of Measure

Each
