Adams Rite 8600 Life-Safety Narrow Stile Concealed Vertical Rod Exit Device

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

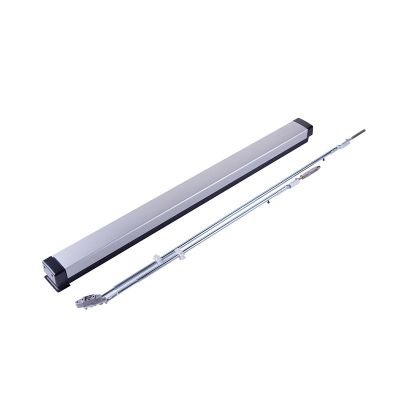

Adams Rite 8600 Life-Safety Narrow Stile Concealed Vertical Rod Exit Device

SKU:
AR 8600
Part #:
Model:
8622-36
$538.11 - $1,098.61

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

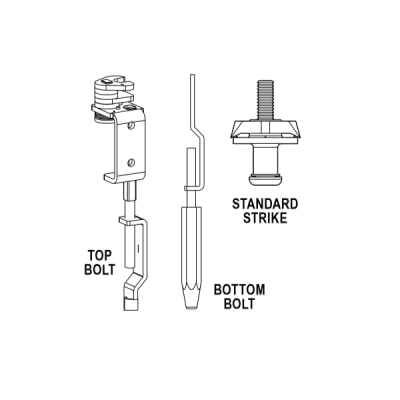

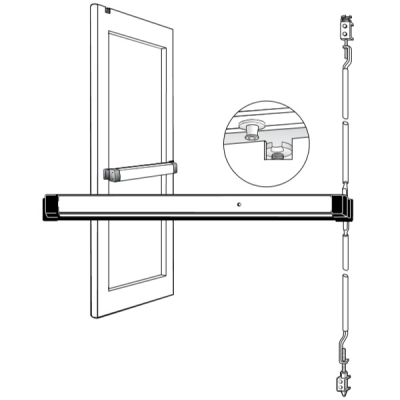

The 8600 Series narrow stile concealed vertical rod exit device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Patented top latching mechanism interlocks door to frame. Strong, durable construction for a high level of security. Easy to install. Clean, unobtrusive design. Adjustable steel rods protected in contoured covers. Accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4 mm) to 1-1/4" (31.8 mm), available separately.

Warranty Information

5 Years Limited

Specifications

  • Application
    Single or pairs of doors
  • Country of Origin
    USA
  • Cylinder
    not included
  • Device Type
    Concealed Vertical Rod
  • Dogging Options
    Hex Key Standard
  • Door Height
    8' (2.44 m)
  • Door Material
    Aluminum
  • Door Thickness
    1-3/4" - 2-1/4" (44.5mm - 57.2mm)
  • Fasteners
    Standard machine screws
  • Fire Rated
    Non Rated
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Height
    Bar adjusts from 30" (762mm) to 44" (1117.6mm)
  • Material
    Extruded Aluminum Push Bar
  • Projection
    2-5/8" (66.7mm), 1-5/8" (41.3) when Dogged
  • Rated Opening Compliant
    No
  • Series
    Adams Rite 8600 Series Narrow Stile Concealed Vertical Rod Exit Device
  • Standards
    UL305 Panic Hardware, ANSI/BHMA A156.3
  • Stiles
    2" (50.8mm) Minimum
  • Trim
    not included
  • Type
    Narrow Stile Pushpad
  • Unit of Measure
    Each
  • Use With
    Any Standard 1" (25.4mm)L, 1-5/32" (29.4mm) Dia. Mortise Cylinder with MS Cam Such as the 4036 Mortise Cylinder
  • Width
    2" (51mm)
