Product Overview

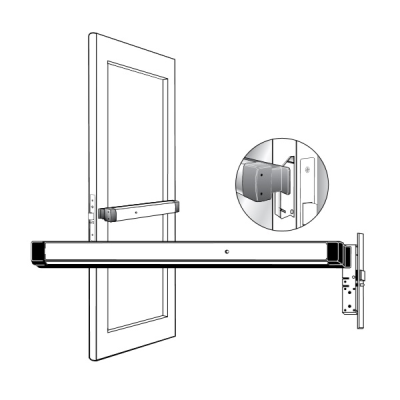

The 8400 Series Life-Safety Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications. Accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4 mm) to 1-1/4" (31.8 mm), available separately.
Warranty Information
5 Years Limited
Specifications
- ApplicationSingle Door
- Bolt5/8" x 1" (15.9 mm x 25.4 mm) Solid Brass
- Bolt Throw Length5/8" (16mm)
- Country of OriginUSA
- Cylindernot included
- Device TypeMortise, Life Safety
- Dogging OptionsHex Key Standard
- Door MaterialAluminum
- Door Thickness1-3/4" (44.5 mm)
- Face ShapeFlat, Bevel, Radius
- FastenersStandard machine screws
- Fire RatedNon Rated
- GradeGrade 1
- MaterialExtruded Aluminum Push Bar
- Projection2-5/8" (66.7mm), 1-5/8" (41.3) when Dogged
- Rated Opening CompliantNo
- SeriesAdams Rite 8400 Series Exit Devices
- StandardsUL305 Panic Hardware, ANSI/BHMA A156.3
- Stiles2" (50.8mm) Minimum
- Trimnot included
- TypeNarrow Stile Pushpad
- Unit of MeasureEach
- Use WithAny Standard 1" (25.4mm)L, 1-5/32" (29.4mm) Dia. Mortise Cylinder with MS Cam Such as the 4036 Mortise Cylinder
- Weight11
- Width2" (51mm)
